Product Description
Carlinkit Tbox UHD TV Box Android 13 Wireless Adapter CarPlay AI Box SM6225 8Gb Adapter 4K HD Video Output
Proudct Feature
Built-in Full Android 13.0, Wireless Apple CarPlay, Wireless Android Auto,
Qualcomm SM6225 Processor, 8GB+128GB, 4G Cellular (SIM Card Slot), TF Card (up to 512GB)
Feature enables HDMI connection, facilitating HD image output connectivity with HD displays.
Split-screen display allows for seamless multitasking without interference.
Low power consumption design. Keep your hands free and drive safely
Product specification
| Model |
CPC200-Tbox-UHD |
| CPU |
Qualcomm’s SM6225 Quad-core ARM Cortex-A73, Kryo 265 Gold @2.4GHz+Quad-core ARM
Cortex- A53,Kryo 265 Silver @1.9GHz) 6 nm N6 process |
| GPU |
Adreno 610 |
| Memory |
8GB LPDDR4 RAM+128GB UFS ROM |
| Support Extension |
512GB |
| WiFi Module |
WCN3980 |
| MFI |
MFI 3959 |
| Operator Version |
NA(North America)/EAU(Europe, Asia)/JP(Japan) |
| Communication Standard |
LTD-FDD/LTE-TDD/WCDMA/GSM/EDGE |
| Global Positioning |
GPS/GLONASS/BeiDou |
| Bluetooth frequency |
5.0 BR/EDR/BLE |
| Power Input |
5V+/-0.2V 2A |
| Power Consumption |
6W |
| WiFi Frequency |
802.11a/b/g/n/ac, 2.4G+5G |
| Material |
ABS |
| Colour |
White |
| The wireless CarPlay |
iPhone 6 and above / iOS 10.0 and above |
| Wireless Android Auto |
Android phone with Android 11.0 and above |
| Compatible Car |
Car with factory wired CarPlay/wired Android Auto |
| Resolution |
Adaptive (maintain the original protocol resolution) |
| Language |
Multiple languages around the world, such as: Arabic, Chinese, English, French |

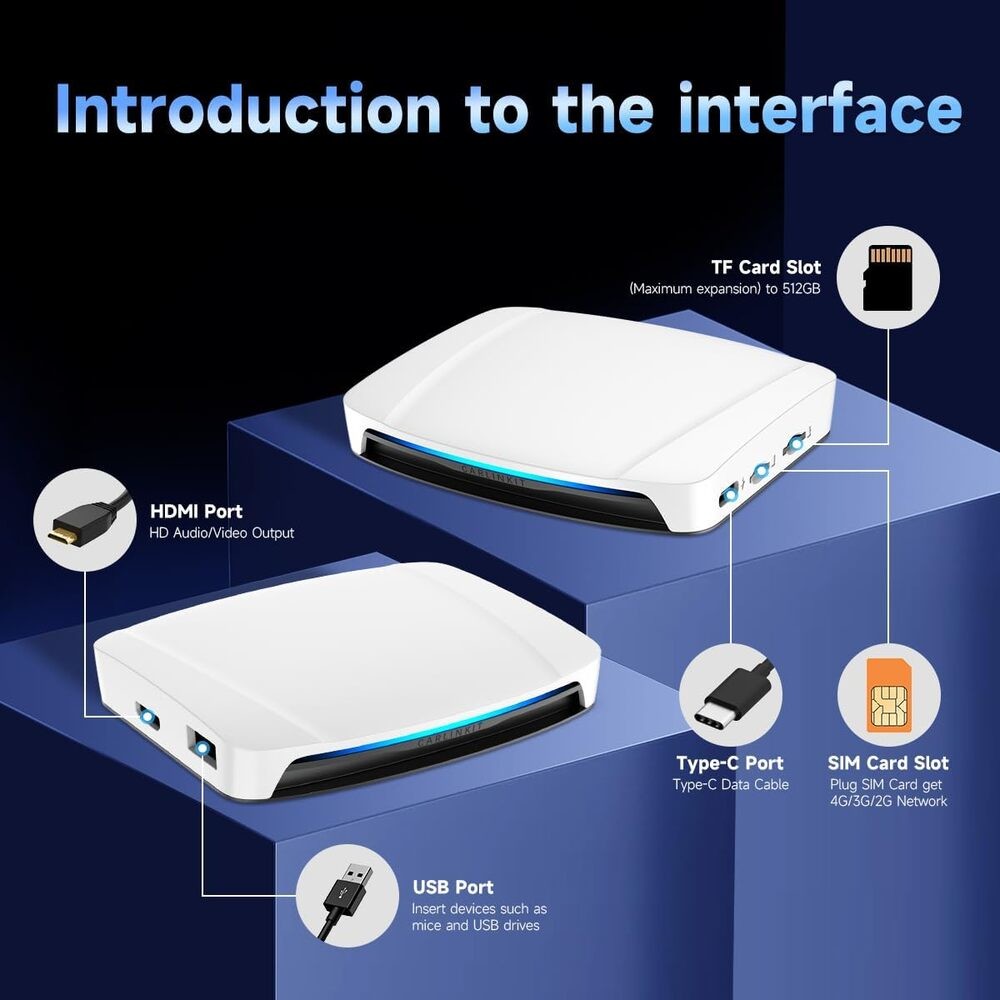

| Port |
LED Light, Type-C Female Port, TF Card Slot, HDMI port |
| Date cable |
USB-A to USB-C*1 USB-C to USB-C*1 L=300mm HDMI Adapter*1 L=170mm |
| Product Size |
90*84.9*17.1mm 3.54*3.34*0.67 inch |
| Package Dimensions |
110*106*39mm |
| Product Weight |
0.1034kg |
| Packing Gross Weight |
0.244kg |
| Packing List |
Packing Box* 1, Product *1, Data cable *2, HDMI Adapter *1, Product Manual *1,Ejection Pin *1 |
Conditions of use
Car models with wired CarPlay or Android Auto
Projection playback: secondary/rear screen supports HDMI input
Wireless CarPlay: iOS10+, iPhone6+
Wireless Android Auto: Android 11.0+
HDMI Cinema Mode
Ensuring crisp and clear visuals on secondary screen.
Simply connect device via HDMI and turn on the secondary screen to activate.
Designed for passenger viewing only and not visible to the driver when vehicle in motion.
Wide Compatibility
Compatible with car models with Android system 4.4+
Support over 600+ car models covers most of the mainstream brand
iPhone 6 and above models, iOS 10 or above version.
Android phone: support for Android 11.0 and above
High-Quality Audio and Video
Delays are minimized for smooth audio and video playback.
Supports high-resolution audio streaming for a better in-car entertainment experience.
Apple Music, Spotify, and Pandora help streaming favorite songs and playlists seamlessly
Dual channel switching
Dual channel switching, enabling effortless transition between Carplay (default) and Android Auto modes.
Switching modes via the TF card (requires file transfer) or using the pin port located at the bottom
Insert the card's pin and hold for approximately 3 seconds to switch modes, green light indicating Carplay mode.
